Calibration of Vibration Measuring Equipment

A wide range of calibration services for vibration measuring equipment

Accelerometers are used in many important everyday devices that ensure personal safety. In order to perform reliable measurements, your measuring equipment, measuring chains and calibrators must be calibrated at regular intervals.

This way, you can ensure that your devices provide reproducible measurements and maintain their required quality level.

Detailed information available for download:

Accreditation certificate

Flexible accreditation (in German)

We offer:

Accredited calibration services at DAkkS level
One-stop-services with SPEKTRA calibration systems
Lowest possible measurement uncertainty
Reliable contact person and personal advice
Short processing time in the laboratory of only 5‑7 working days (optional: express calibration)

Frequency range

0.1 Hz…20 kHz (DAkkS-accredited)

Acceleration

0.01 m/s²…250 m/s²

Calibration in accordance with standards

ISO 16063-11
ISO 16063-21

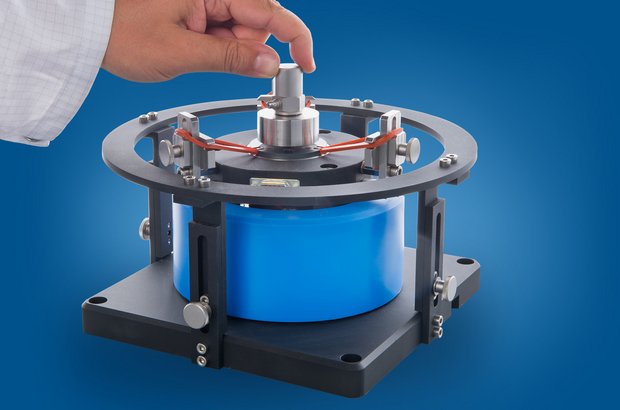

Vibration transducers and measuring instruments

For acceleration and velocity measurement.

Secondary calibration according to ISO 6063-21:2003 or DKD-R 3-1 Sheet 3:2018

Primary calibration of reference standards or internal standards according to ISO 16063-11:1999, ISO 16063-16:2014 or DKD-R 3-1 Sheet 4:2018

Frequency range: 0.1 Hz…20 kHz
Acceleration: 0.01 m/s²…250 m/s²

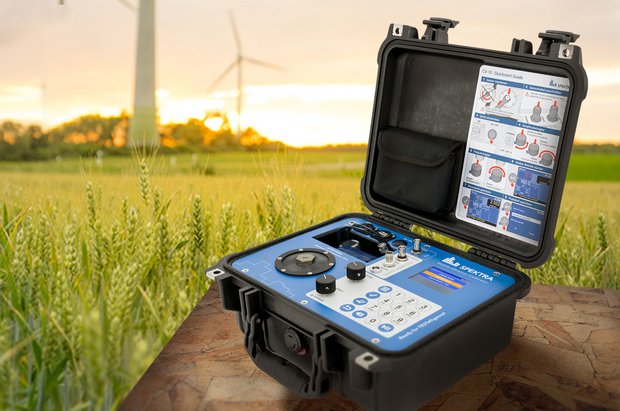

Vibration calibrators and calibration systems

Calibration according to ISO 16063-11:1999, ISO 16063-21:2003, DKD-R 3-1 Sheet 3:2018, DKD-R 3-1 Sheet 4:2018

Primary calibration of integrated vibration transducers in vibration exciters (internal standards) according to ISO 16063-11

Frequency range: 0.1 Hz…20 kHz
Acceleration: 0.01 m/s² and 250 m/s²

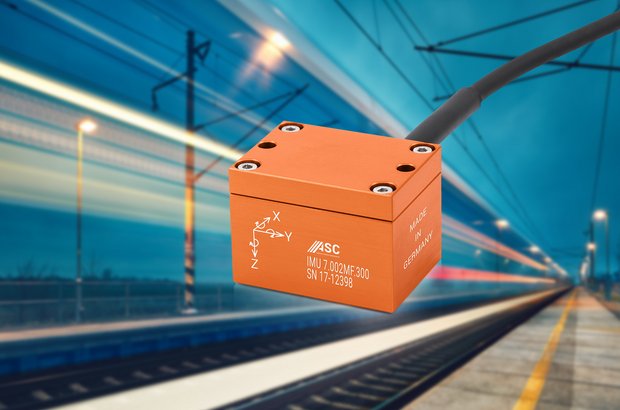

Inertial Measurement Units (IMU)

Calibration of acceleration and angular rate in three axes.

Learn more

Customers from all over the world

Join over 3,000 customers and trust SPEKTRA for your calibration and testing requirements.

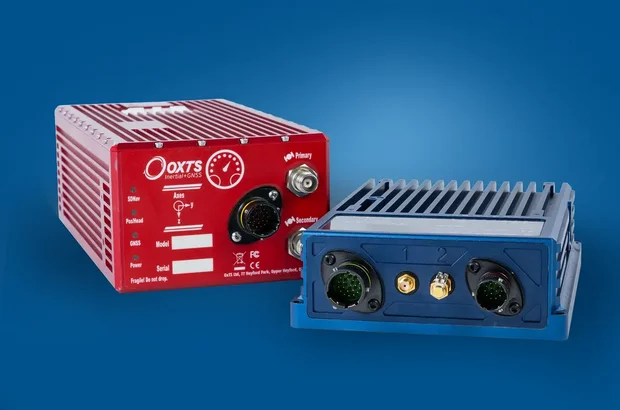

Inertial Navigation System (INS)

DAkkS-accredited and factory calibration of devices with INS receivers for the measurand velocity.

triaxial rotation velocity at DAkkS level
only manufacturer-independent calibration laboratory in Europe
short throughput times = low downtimes

Details on GNSS/INS calibration

Seismometers / Geophones

Geophones and seismometers are key components of vibration measurement technology. Using specially developed exciters and measurement systems, we are experts in testing and calibrating these large and highly sensitive devices.

Learn more

Do you need a quote or have questions about our services?
Give us a call or use the contact form.

SPEKTRA LABS
Sales Team
+49 351 400 24 0

Get your calibration certificate in just 6 steps

Why is calibration
necessary in the first place?

Here, you will find an informative overview with explanations, information and the benefits of our services.
